Features:

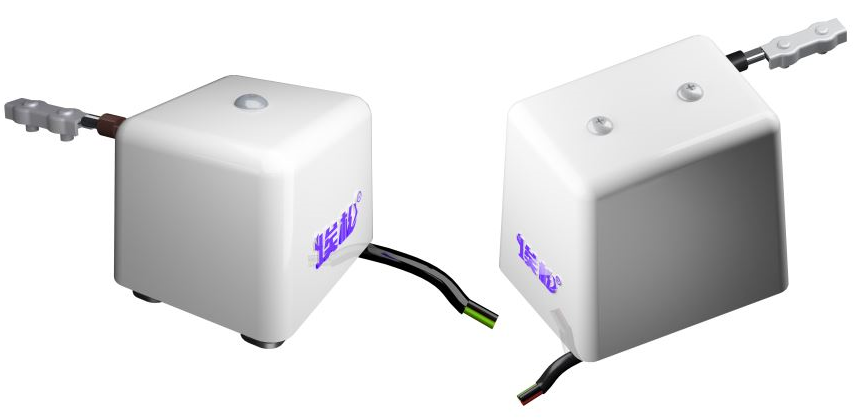

The sash sensor is installed on the top of the fume hood and is used to accurately measure the opening of the sash of the fume hood.
According to requirements, two ranges of 0～1000mm and 0～2000mm are available for selection.
A high-strength stainless steel cable is wound around the inner hub, and the hub is connected with a high-precision potentiometer.
It has the advantages of acid and alkali resistance, high measurement accuracy, compact structure and convenient installation.
Parameters:
Range | 0～1000mm,0～2000mm |
Linear accuracy | <0.25% |
Service life | > 100,000 times |
Output resistance | 0-10KΩLinear relationship with external measurements |
Certification | CE,FCC,RoHS |
